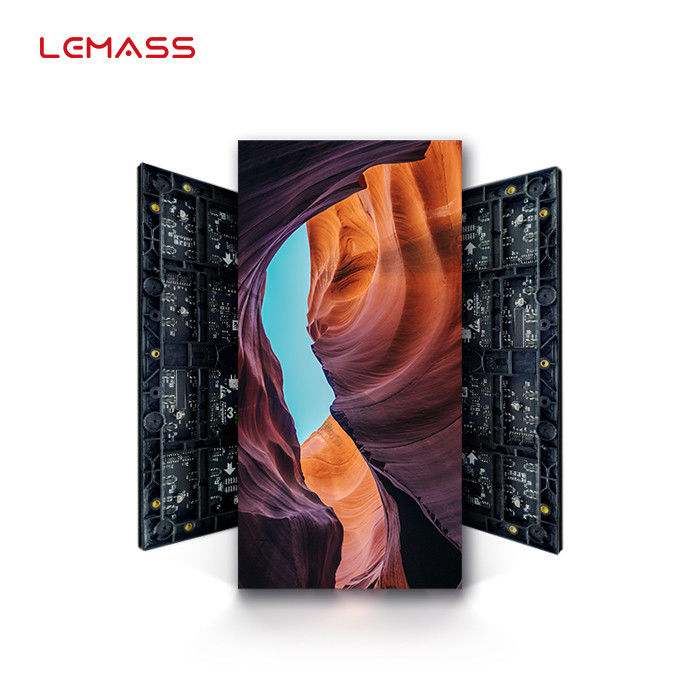

320×160mm P5 Smd LED Module , IP31 Indoor Advertising LED Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P5 Indoor advertising LED screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P5 Indoor Advertising LED Screen | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 4mm | Resolution: | 80×40 |
| Features: | Pixel By Pixel Correction | Brightness: | 850cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.47±0.05 |
| High Light: | Advertising P5 Smd LED Module,IP31 P5 Smd LED Module,P5 Indoor Advertising LED Screen |
||
Product Description
P5 Indoor advertising LED screen 320*160mm MSG Series high contrast ratio
Description:
Indoor led panels are large format screens based on led technology, composed of several cabinets, seamless (unlike other technologies such as LCD or OLED) able to play static pictures as well as any video formats as if it was a large format PC monitor.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG5 |
| Pixel Pitch (mm) | 5 |
| Pixel Density (pixels/sqm) | 40,000 |
| Module Resolution | 64×32 |
| Mask | Optional |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×160×14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 850 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤420,Ave:≤140 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:
Applications:

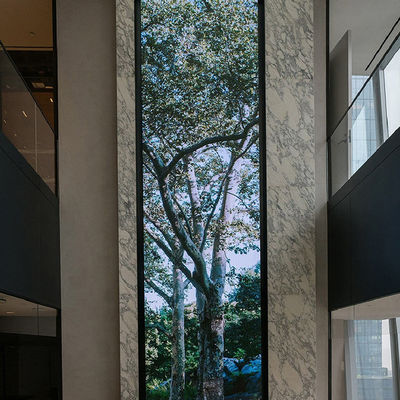

Widely used in shopping malls, exhibition halls, conference centers, etc.
