Soft Shaping Curved LED Display Module P1.2 With 160 Degree Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 Curved LED Display Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Curved LED Display Module | Size: | 240×120mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 192×96 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 0.215±0.05kg |
| High Light: | Curved LED Display Module P1.2,160Degree Curved LED Display |
||
Product Description

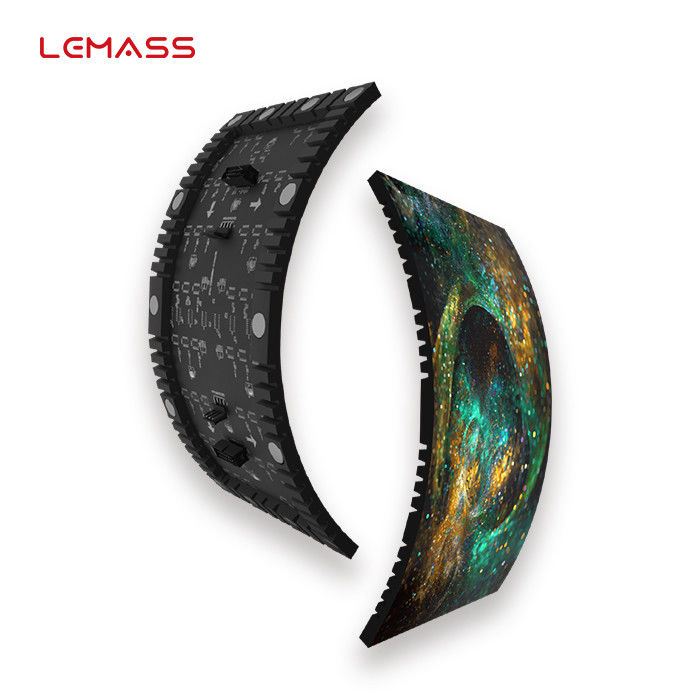

P1.2 Curved LED Display Module 240*120mm LMS-Soft Customized Surface Soft Shaping
Description:
LMS-Soft Series indoor LED module (display ratio 2:1) can be used in all mainstream LED screen control systems. Its production process, materials and assembly are carried out in accordance with strict standards. LMS-Soft has the characteristics of small space occupation, thickness only 10mm, flexible, strong magnetic adsorption, easy installation and maintenance, etc. Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft1.2B-X |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 192×96 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 240×120×8.6 |
| Module Weight (kg) | 0.215±0.05 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤798,Ave:≤266 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

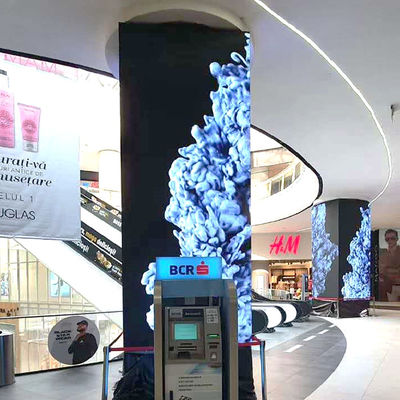

Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
