SMD 1515 P2 Indoor LED Display With 160 Degree Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2 high quality indoor led cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2 High Quality Indoor Led Cabinet | Size: | 640×480mm |
|---|---|---|---|
| Pixel Pitch: | 2mm | Resolution: | 320×240 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 7.7±0.05kg |
| High Light: | SMD P2 Indoor LED Display,160 Degree P2 Indoor LED Display,P2 Indoor SMD LED Display |
||
Product Description

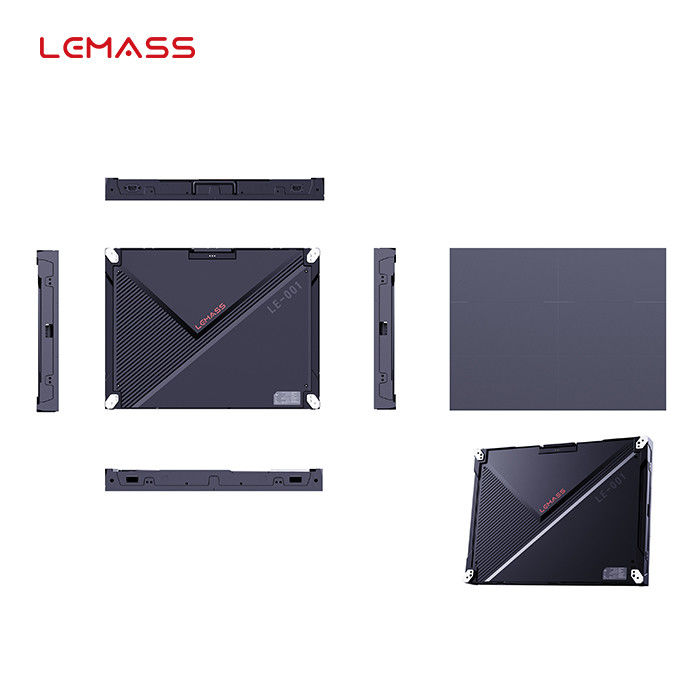

P2 high quality indoor led cabinet 640*480mm MH Series 160° ultra-wide viewing angle
Description:
In this rapidly developing world, innovative and efficient projects are taking over. Similarly, with the constant upheaval and progress of technology, betterment and improvement in visual technologies can also be seen. The best example of fast progression in visual technology is the LED displays. It has now become quite profitable and rewarding to own a LED display, whether indoor or outdoor. Nobody ever thought that with these LED displays sharing information with audiences can get this convenient.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA2.0-G |
| Pixel Pitch (mm) | 2.0 |
| Pixel Density (pixels/sqm) | 250,000 |
| Module Resolution | 160x80 |
| Cabinet Resolution | 320×240 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640×480×65.5 |
| Cabinet Weight (kg) | 7.7±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370,Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

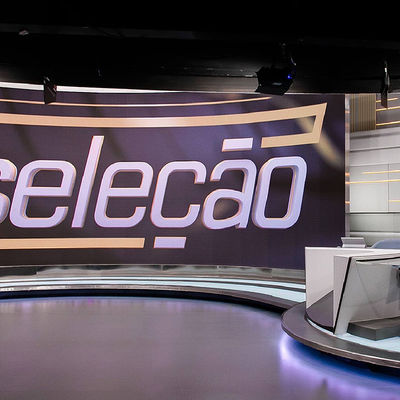

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
