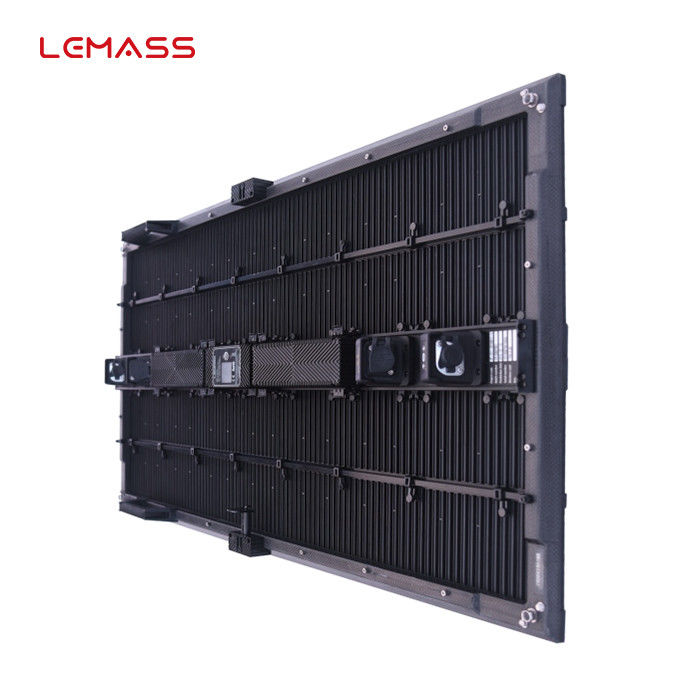

P10.4D outdoor Anti-UV rental LED display 500*1000mm LMS-CLM Series front maintenance
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P10.4D outdoor Anti-UV rental LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P10.4D Outdoor Anti-UV Rental LED Display | Size: | 500×1000mm |
|---|---|---|---|
| Pixel Pitch: | 10.41mm | Resolution: | 48x96 |
| Features: | Carbon Fiber Structure | Brightness: | 5000cd/sqm |
| Lamp Type: | SMD3535 | Weight: | 7.4(without Cable) 7.7(with Cable) |
Product Description
P10.4D outdoor Anti-UV rental LED display 500*1000mm LMS-CLM Series front maintenance
Description:
Benefits: The commodity has the benefits of high translucency, elevated safety level, lightweight, simple establishment and much more. It could be utilised both ways in indoor as well as outdoor and can be rapidly compiled and dismantled to satisfy the wants of several stage phenomena.
Quick Detail:
· Carbon fiber structure
· High transparency
· LCD Visual monitoring
· System & PSU Backup
· Bevel anti-bump design
· Front maintenance design
Specifications:
|
Parameter Item |
LMS-CLM10.4D-M3 |
| Pixel Pitch (mm) | 10.41 |
| Pixel Density (pixels/sqm) | 9,216 |
| Cabinet Resolution | 48x96 |
| Mask | Standard |
| Lamp Type | SMD3535 |
| Cabinet Size (mm) | 500 x 1000 x 77 |
| Cabinet Weight (kg) | 7.4(without cable) 7.7(with cable) |
| Brightness (cd/sqm) | 5000 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3500~9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | 100-240V AC, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -35~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:
Applications:
Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
Want to Know more details about this product
