Outdoor P3.9 Full Color LED Display Screen With 3.9mm Pixel Pitch
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3.9 outdoor full color rental LED wall display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3.9 Outdoor Full Color Rental LED Wall Display | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 3.9mm | Resolution: | 128x128 |
| Features: | System & PSU Backup | Brightness: | 4500cd/sqm |
| Lamp Type: | SMD1921 | Weight: | 8.25±0.05 |
| High Light: | P3.9 Full Color LED Display Screen,3.9mm Full Color LED Display Screen,Outdoor 3.9 mm led screen |
||
Product Description
P3.9 outdoor full color rental LED wall display 500*500mm LMS-MSR Series power consumption
Description:
Caution of “LED screen not found”.
When happening such situation, the software will warn you that LED display is not found even though the display can work well to display pictures and videos, however, you can not send new setting to it.
a. In common, this is because of bad sending card. Just replace it.
b. Something happened to the control computer end. For example, the COM or USB port is broken. Replace the control computer or serial port line.
c. Check the connection between serial port line, USB and sending card. Reassure the connections, if they are loosen, reconnect them.
Quick Detail:
· High uniformity for color display
· Front and rear maintenance
· System & PSU Backup
· Anti-collision structure of lamp
· Ultra-high refresh rate
· Easy to maintain and install
Specifications:
| Parameter Item | LMS-MSR3.9S |
| Pixel Pitch (mm) | 3.9 |
| Pixel Density (pixels/sqm) | 65,740 |
| Module Resolution | 64×64 |
| Cabinet Resolution | 128x128 |
| Mask | Standard |
| Lamp Type | SMD1921 |
| Module Size (mm) | 250×250×18 |
| Module Weight (kg) | 0.62±0.05 |
| Cabinet Size (mm) | 500×500×75 |
| Cabinet Weight (kg) | 8.25±0.05 |
| Brightness (cd/sqm) | 4500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | Optional |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤690,Ave:≤230 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

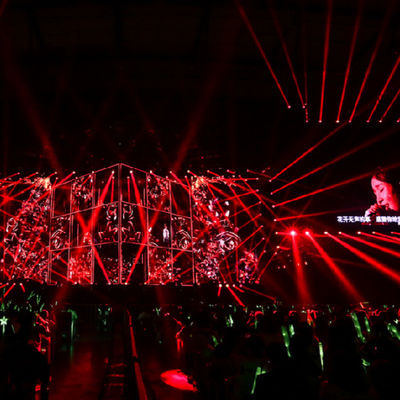

Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
