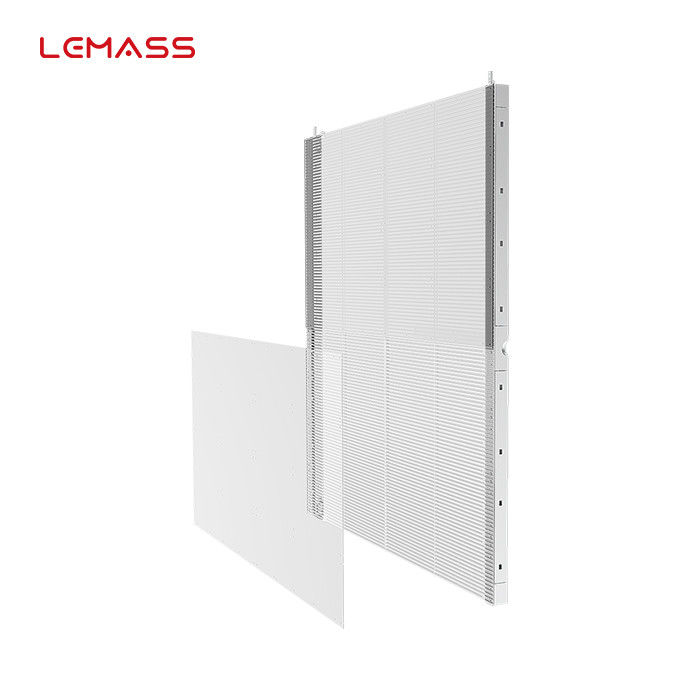

Indoor P7.8 Creative LED Display Screen , Ultra Thin Transparent LED Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P7.8 indoor creative LED transparent display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P7.8 Indoor Creative LED Transparent Display | Size: | 1000x500x60mm / 500x500x60mm |
|---|---|---|---|
| Pixel Pitch: | H:7.8mm V:7.8mm | Resolution: | 128x64 64x64 |
| Features: | High Transparency | Brightness: | 4000cd/sqm |
| Lamp Type: | SMD2121 / 1921 | Weight: | 5+0.05kg / 2.5+0.05kg |
| High Light: | P7.8 Creative LED Display Screen,Creative LED Display Screen Transparent,Creative Transparent LED Video Wall |
||
Product Description
P7.8 indoor creative LED transparent display LMS-TF Pro series novel structural
Description:
The system’s changing arrangement also helps create various shades and color differences in the transparent led display. This change occurs through polarizers installed in the system. The setup allows users to change the division of dark and light surfaces through the electrical field. However, it is essential to notice that the entire setup is sensitive to damage. Minor abrasions, scratches, and even slight damages will appear on the screen and mess up the transparent screen. Thus, users must ensure care when handling and installing these screens. It is best to avoid pressing, rubbing, or scratching the screen because minor damage to the polarizer can impact the overall display screen.
Quick Detail:
· High transparency
· Ultra-thin
· Modular design
· Wide viewing angle
· High brightness
· XR wide color gamut
Specifications:
| Parameter Item | LMS-Tfree-Pro-F7.8 |
| Pixel Pitch (mm) | H:7.8 V:7.8 |
| Pixel Density (pixels/sqm) | 16,384 |
| Cabinet Resolution | 128 x 64 / 64 x 64 |
| Cabinet Size | 1000x500x60 / 500x500x60 |
| Transparency Rate | ≧60% |
| Pixel composition | SMD2121 / 1921 |
| Cabinet Weight (kg) | 5 / 2.5 |
| Brightness (cd/sqm) | 4000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤220 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | 0~+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
