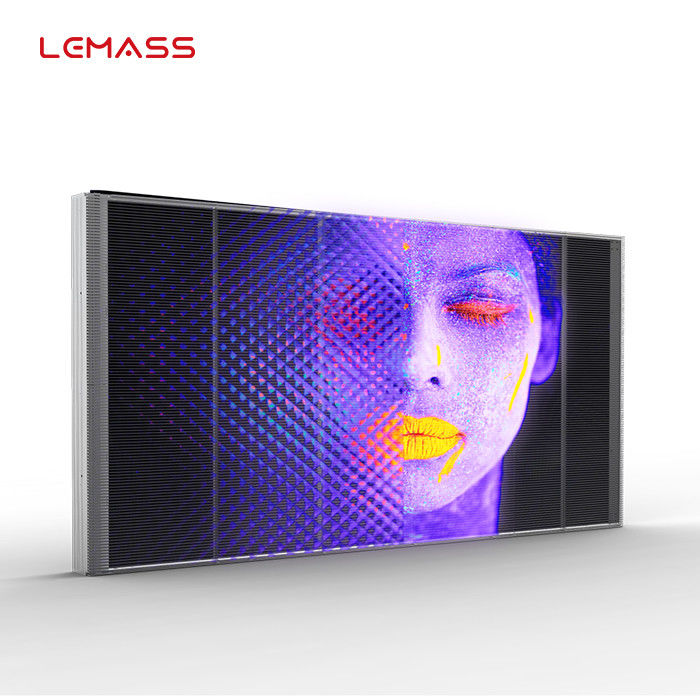

Commercial LED Display Transparent , SMD 3510 LED Screen P3.9 High Transparency
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3.9 new retail transparent LED screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3.9 New Retail Transparent LED Screen | Size: | 2000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:3.9mm V:7.8mm | Resolution: | 502×128 |
| Features: | High Transparency | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD3510 | Weight: | 7.5+0.05kg |
| Highlight: | SMD LED Display Transparent,LED Display Transparent 3510,Commercial LED Screen P3.9 |
||
Product Description
P3.9 new retail transparent LED screen LMS-Isky high transparency above 90%
Description:
LMS-Isky project series has Isky-N series (no tube) and Isky-T series( with tube). Lemass transparent led display is a kind of innovative transparent led display, which does not affect the building space and building lighting. It has successfully realized commercial display, built new retail, new experience, and new business forms for smart cities, and integrated smart quotient into modern city.
Quick Detail:
· High Transparency | Above 90%
· High Brightness | 5500nit/㎡
· Tube Design
· Easy Maintenance
· Customized Size And Shape
Specifications:
| Parameter Item | LMS-Isky-N3.9 |
| Pixel Pitch (mm) | H:3.9 V:7.8 |
| Pixel Density (pixels/sqm) | 32,256 |
| Cabinet Resolution | 502×128 |
| Cabinet Size | 2000 x 1000 x 57 |
| Transparency Rate | ≥75% |
| Pixel composition | SMD3510 |
| Cabinet Weight (kg) | 7.5 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP30 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥1920 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤720,Ave:≤260 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | 0~+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:

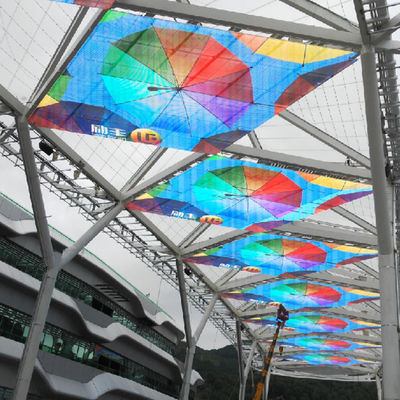

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
