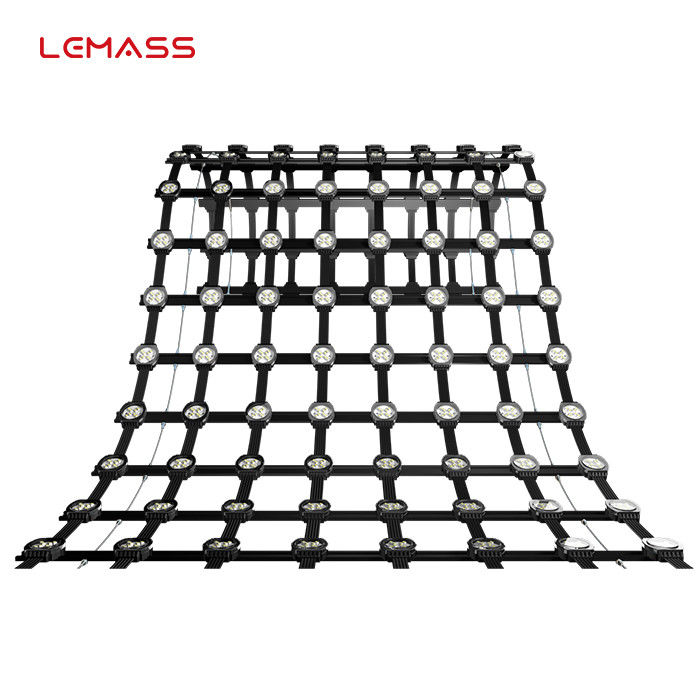

Outdoor P55 Creative LED Display Screen For Building Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | ≥P55 SMD dot LED building video wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | ≥P55 SMD Dot LED Building Video Wall | Light Point Size: | 18x18x10.5 |
|---|---|---|---|
| Weight: | ＜4.6g | Pixel Composition: | SMD 2727 4 |
| Point Brilliance: | 10 | Features: | High Transparency |
| Refresh Rate: | ≥2000 | Single Point Power: | 0.9 |
| High Light: | P55 Creative LED Display Screen,Building Creative LED Display Screen,Video Wall Outdoor LED Display Screen |
||
Product Description
≥P55 SMD dot LED building video wall 18*18 light point LMS-ECO ultra light and thin
Description:
The definition of dot pitch
While the phrases "dot pitch" and "resolution" are synonymous, their meanings are distinct. The resolution of a display refers to the number of pixels that may be displayed on the screen. A 20-inch monitor, for example, might have a maximum resolution of 1680 x 1050 pixels. Whenever a display is set to its native resolution (usually the highest), one pixel per dot may be displayed. The pixels would be larger than the dots utilised to display the image on the screen if the resolution is decreased. Each pixel is assigned to numerous dots in this scenario.
Quick Detail:
· High Transparency | 85%
· Ultra Light and Thin
· High Contrast Ratio
· Outdoor Waterproof
· Anti-fire
· Stable System Good Operation
Specifications:
| Parameter Item | LMS-ECO-4 |
| Pixel Pitch (mm) | 35mm/40mm/55mm/80mm/100mm/110mm/160mm/Xmm |
| Pixel composition | SMD 2727 4 |
| Light Point Size (mm) | 18x18x10.5 |
| Light Point Weight (g) | ＜4.6 |
| Point Brilliance | 10 |
| Gray Scale (Bit) | 12 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 60FPS |
| Refresh Rate (Hz) | ≥2000 |
| Working Voltage | DC 15 |
| Single Point Power | 0.9 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+75 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range | 10%~90%, Non-condensing |
Details about the product:
Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
