P55 SMD Dot Pixel Creative LED Display Screen Multifunctional Anti Fire
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | ≥P55 SMD dot pixel LED transparent display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | ≥P55 SMD Dot Pixel LED Transparent Display | Light Point Size: | 18x18x17.9 |
|---|---|---|---|
| Weight: | ＜5g | Pixel Composition: | SMD 2727 4 |
| Point Brilliance: | 10 | Features: | High Transparency |
| Refresh Rate: | ≥2000 | Single Point Power: | 0.9 |
| High Light: | Creative LED Display Screen Multifunctional,Creative LED Display Screen P55,Anti Fire pixel led display screen |
||
Product Description

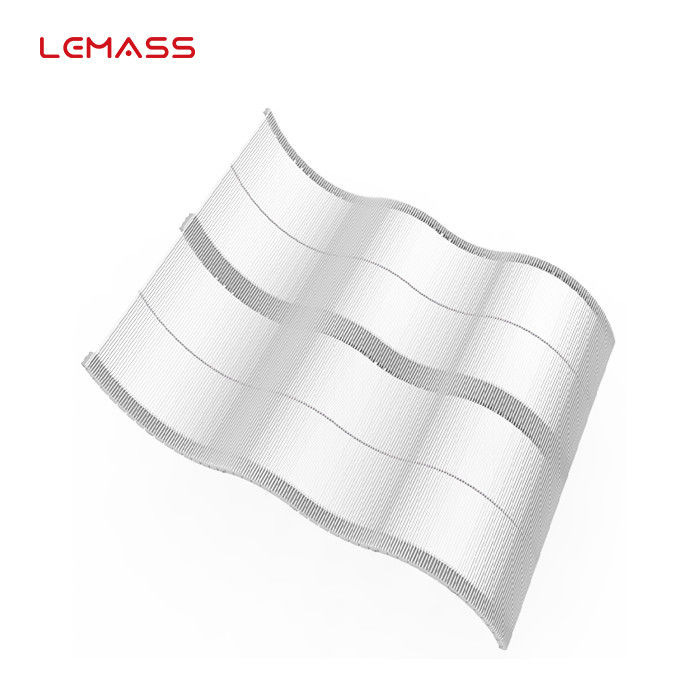

≥P55 SMD dot pixel LED transparent display 18*18 light point LMS-ECO anti-fire
Description:
What is the impact of having a higher/lower dot pitch?
Pixel pitch is significant since it determines the display's ideal viewing distance. Lower pixel pitch values result in better detail with a smooth border in an image. This permits the spectator to get near the screen without being distracted by pixel recognition. The rule of thumb when it comes to pixel pitch and viewing distance would be that of a pixel pitch that is smaller for a closer viewing distance. A greater pixel pitch, on the other hand, lengthens the minimum viewing distance. As a result, a 1.2mm screen has a greater resolution and a closer ideal viewing distance than a 16mm screen.
Quick Detail:
· High Transparency | 85%
· Ultra Light and Thin
· High Contrast Ratio
· Outdoor Waterproof
· Anti-fire
· Stable System Good Operation
Specifications:
| Parameter Item | LMS-ECO SM-4 |
| Pixel Pitch (mm) | 35mm/40mm/55mm/80mm/100mm/110mm/160mm/Xmm |
| Pixel composition | SMD 2727 4 |
| Light Point Size (mm) | 18x18x17.9 |
| Light Point Weight (g) | ＜5 |
| Point Brilliance | 10 |
| Gray Scale (Bit) | 12 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 60FPS |
| Refresh Rate (Hz) | ≥2000 |
| Working Voltage | DC 15 |
| Single Point Power | 0.9 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+75 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range | 10%~90%, Non-condensing |
Details about the product:
Applications:

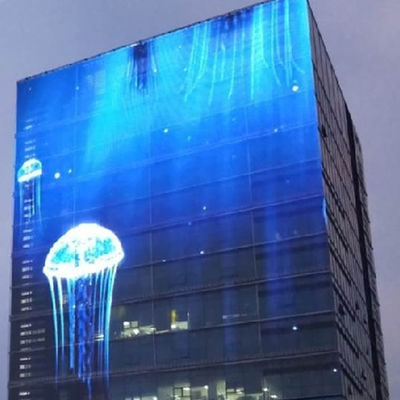

Bring wider commercial applications, and let the large media advertising market, etc.
