P1.2 Indoor Fixed LED Display Multi Directional 640×360mm Size
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 Indoor Fixed LED Display Cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Indoor Fixed LED Display Cabinet | Size: | 640×360mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 512×288 |
| Features: | 16:9 Standard Format Design | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 7.10±0.05kg |
| High Light: | P1.2 Indoor Fixed LED Display,360mm Indoor Fixed LED Display,Multi Directional P1.2 led display |
||
Product Description

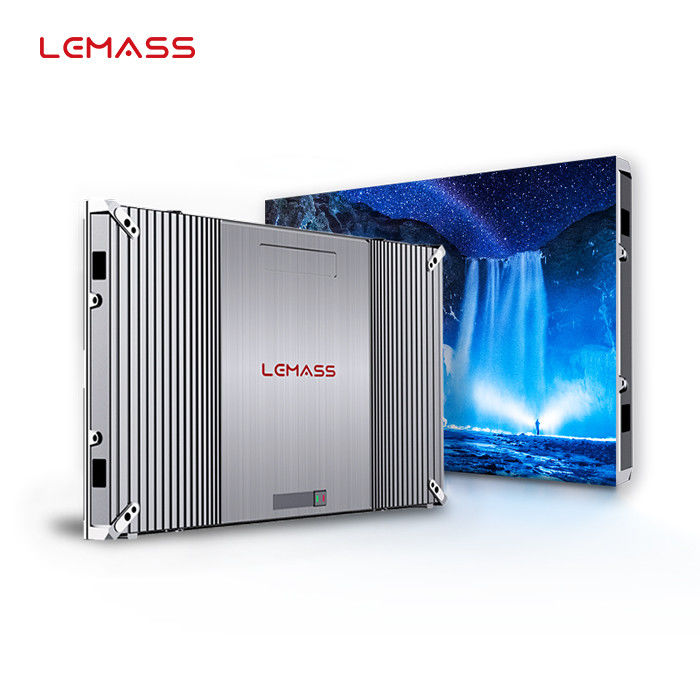

P1.2 Indoor Fixed LED Display Cabinet 16:9 MA Series High Refresh And High Quality PWM Drive IC
Description:
MA Indoor Series cabinet (display ratio 16:9) design is inspired by the Golden Ratio. A is Alpha, which is the first letter of the Greek alphabet. It has a beginning and an initial meaning, which also means it represents the first step for Lemass to achieve product innovation. MA indoor supports multi-directional adjustment, widely used in high-end conferences, controlling centers, data centers, etc.
Quick Detail:
· 16:9 Standard Format design
· Supports multi-directional adjustment
· All-round cooling system
· Super wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA1.2 |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 256×144 |
| Cabinet Resolution | 512×288 |
| Mask | No |
| Lamp Type | SMD1010 |
| Cabinet Size (mm) | 640×360×55 |
| Cabinet Weight (kg) | 7.10±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤460,Ave:≤155 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

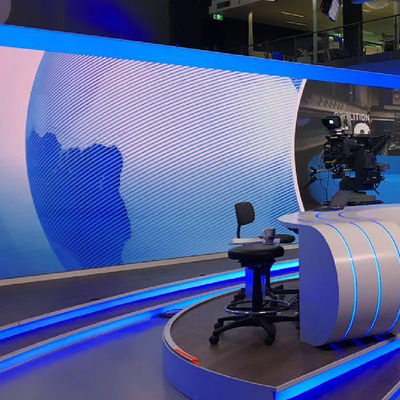

Widely used in high-end conferences, controlling centers, data centers, etc.
