P2.5 Indoor Full Color LED Display , LED Video Wall Screen 2.5mm Pixel Pitch OEM
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 full color fixed led video wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 Full Color Fixed Led Video Wall | Size: | 640×360mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 256×144 |
| Features: | 16:9 Standard Format Design | Brightness: | 750cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 7.10±0.05kg |
| High Light: | P2.5 Indoor Full Color LED Display,OEM Indoor Full Color LED Display,LED Video Wall Screen 2.5mm |
||
Product Description

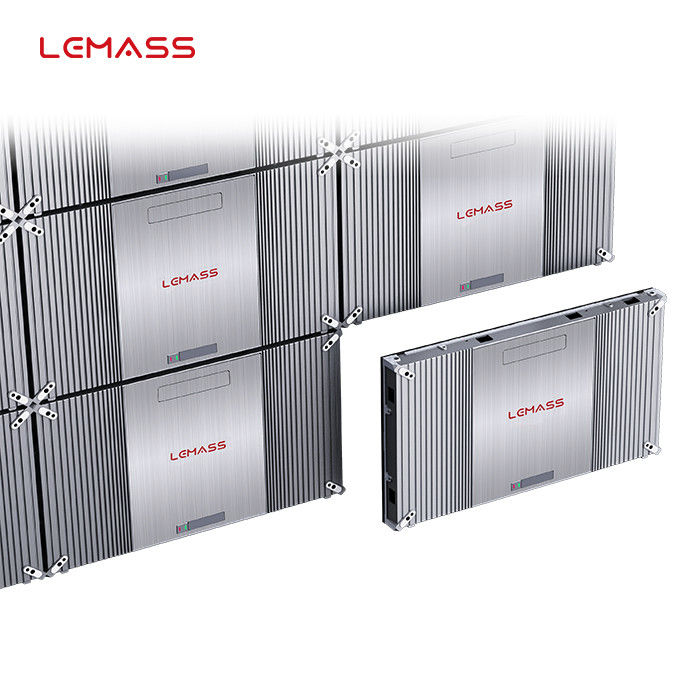

P2.5 full color fixed led video wall 16:9 MA Series easy to install and maintain
Description:
Indoor LED displays are one of the most straightforward screens to install. The LED display is carefully developed with high quality, and versatile brand SMD LED chip. As mentioned above, due to this SMD chip technology, the luminescence and brightness of the screen increase drastically while providing a better, colorful, sharper and more evident impact than any other LED displays.
Quick Detail:
· 16:9 Standard Format design
· Supports multi-directional adjustment
· All-round cooling system
· Super wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA2.5 |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm) | 160,000 |
| Module Resolution | 128×72 |
| Cabinet Resolution | 256×144 |
| Mask | Optional |
| Lamp Type | SMD2121 |
| Cabinet Size (mm) | 640×360×55 |
| Cabinet Weight (kg) | 7.10±0.05 |
| Brightness (cd/sqm) | 750 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤420,Ave:≤140 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in high-end conferences, controlling centers, data centers, etc.
