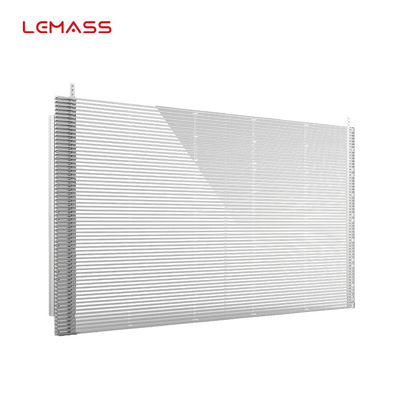

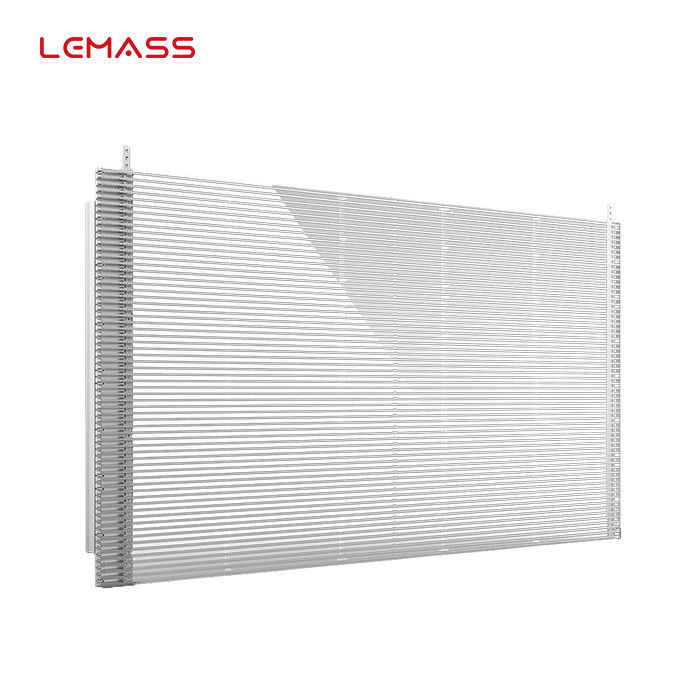

P3.9 Creative LED Display Transparent LMS-TF Pro series novel structural HD High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3.9 Creative LED Display Transparent |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3.9 Creative LED Display Transparent | Size: | 1000x500x60mm / 500x500x60mm |
|---|---|---|---|
| Pixel Pitch: | H:3.9mm V:7.8mm | Resolution: | 256x64 128x64 |
| Features: | High Transparency | Brightness: | 4000cd/sqm |
| Lamp Type: | SMD2121 / 1921 | Weight: | 5+0.05kg / 2.5+0.05kg |
Product Description
P3.9 Creative LED Display Transparent LMS-TF Pro series novel structural HD High Brightness
Description:
LMS-Tfree Pro transparent led display is a kind of innovative transparent led display with its high transparency, novel structural,HD high brightness, Simple application, intelligent control, energy saving and environmental, novel imaging etc. it is realize the brand new, irreplaceable high-tech display solution and bring wider commercial applications, and let the large media advertising market.
Quick Detail:
· High transparency
· Ultra-thin
· Modular design
· Wide viewing angle
· High brightness
· XR wide color gamut
Specifications:
| Parameter Item | LMS-Tfree-Pro-F3.9 |
| Pixel Pitch (mm) | H:3.9 V:7.8 |
| Pixel Density (pixels/sqm) | 32,768 |
| Cabinet Resolution | 256x64 / 128x64 |
| Cabinet Size | 1000x500x60 / 500x500x60 |
| Transparency Rate | ≧60% |
| Pixel composition | SMD2121 / 1921 |
| Cabinet Weight (kg) | 5 / 2.5 |
| Brightness (cd/sqm) | 4000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤220 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | 0~+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
