Transparent P6.9 Rental LED Cabinet Screen Anti Bump With Carbon Fiber Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P6.9 rental transparent LED display cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P6.9 Rental Transparent LED Display Cabinet | Size: | 500×1000mm |
|---|---|---|---|
| Pixel Pitch: | 6.94mm | Resolution: | 72x144 |
| Features: | Carbon Fiber Structure | Brightness: | 5000cd/sqm |
| Lamp Type: | SMD1921 | Weight: | 7.4(without Cable) 7.7(with Cable) |
| High Light: | P6.9 Rental LED Cabinet,Transparent Rental LED Cabinet,Carbon Fiber led screen cabinet |
||
Product Description

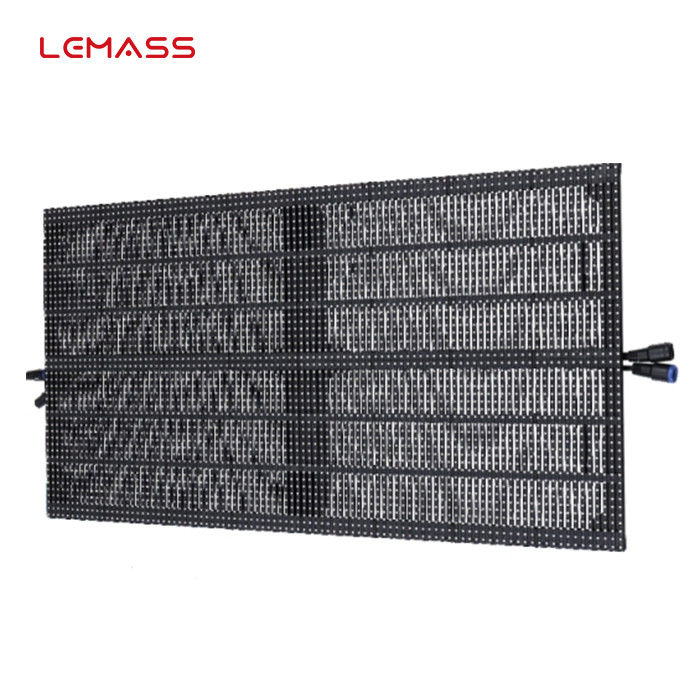

P6.9 rental transparent LED display cabinet 500*1000mm LMS-CLM Series carbon fiber structure
Description:
LMS-CLM Series Cabinet (carbon fiber frame technology, outdoor LED display, ratio 2:1) as an ultra-light outdoor mesh display product. Each cabinet can reach only 5.2kg weight, with full IP65 waterproof and front&rear maintenance. Its performance is stable and it has the characteristics of super load-bearing structure, wind resistance. Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
Quick Detail:
· Carbon fiber structure
· High transparency
· LCD Visual monitoring
· System & PSU Backup
· Bevel anti-bump design
· Front maintenance design
Specifications:
|
Parameter Item |
LMS-CLM6.9D-M3 |
| Pixel Pitch (mm) | 6.94 |
| Pixel Density (pixels/sqm) | 20,736 |
| Cabinet Resolution | 72x144 |
| Mask | Standard |
| Lamp Type | SMD1921 |
| Cabinet Size (mm) | 500 x 1000 x 77 |
| Cabinet Weight (kg) | 7.4(without cable) 7.7(with cable) |
| Brightness (cd/sqm) | 5000 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3500~9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | 100-240V AC, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -35~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
