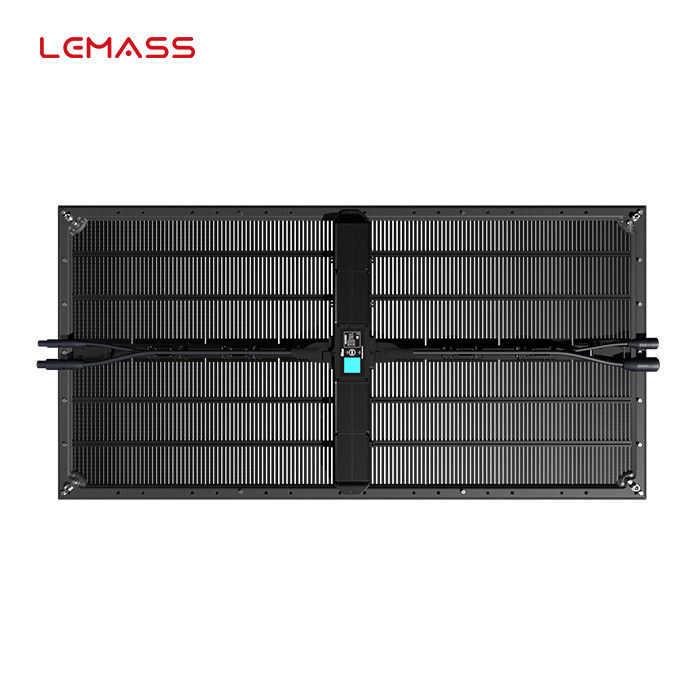

P7.8 outdoor rental LED display 500*1000mm LMS-CLM Series high transparency
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P7.8 outdoor rental LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P7.8 Outdoor Rental LED Display | Size: | 500×1000mm |
|---|---|---|---|
| Pixel Pitch: | 7.81mm | Resolution: | 64x128 |
| Features: | Carbon Fiber Structure | Brightness: | 5000cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 7.4(without Cable) 7.7(with Cable) |
Product Description
P7.8 outdoor rental LED display 500*1000mm LMS-CLM Series high transparency
Description:
In challenging outdoor environments, with high anti-wind capability, our transparent LED rental series aims to offer excellent displaying effects. LMS-CLM cabinet offer an outdoor integrated solution in a Lightweight transparent panel design. This series is fitted with customized frames to facilitate easy handing and fast building while protecting the panels in an exquisite frame, creating efficient transport conditions.
Quick Detail:
· Carbon fiber structure
· High transparency
· LCD Visual monitoring
· System & PSU Backup
· Bevel anti-bump design
· Front maintenance design
Specifications:
|
Parameter Item |
LMS-CLM7.8D-M3 |
| Pixel Pitch (mm) | 7.81 |
| Pixel Density (pixels/sqm) | 16,384 |
| Cabinet Resolution | 64x128 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Cabinet Size (mm) | 500 x 1000 x 77 |
| Cabinet Weight (kg) | 7.4(without cable) 7.7(with cable) |
| Brightness (cd/sqm) | 5000 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3500~9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | 100-240V AC, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -35~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
