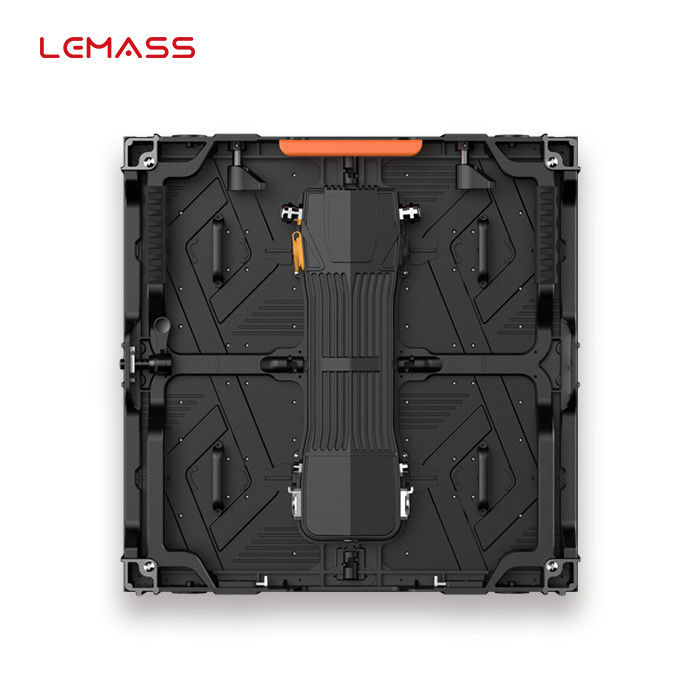

P3.9 LED video wall display cabinet 500*500mm LMS-VVR Series eye protection
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3.9 LED video wall display cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3.9 LED Video Wall Display Cabinet | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 3.91mm | Resolution: | 128x128 |
| Features: | System & PSU Backup | Brightness: | 800cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 7.25±0.05 |
Product Description
P3.9 LED video wall display cabinet 500*500mm LMS-VVR Series eye protection
Description:
We provide great impact LED Video Walls for Meetings, Conferences, Exhibitions and Events to engage and captivate your audience. LED Wall lighting boosts the impact of your display wall or stage features and helps your business stand out in a crowd or convey its message at your next event. With interchangeable display tiles, you can integrate fabric designs and customizable backlit structures with your tradeshow LED Video Walls.
Quick Detail:
· New waterproof process design
· Filter harmful blue light for eye protection
· System & PSU Backup
· Multi-scene application
· Support HDR display
· Intelligent interaction
Specifications:
| Parameter Item | LMS-VVR3.9 |
| Pixel Pitch (mm) | 3.91 |
| Pixel Density (pixels/sqm) | 65,536 |
| Module Resolution | 64x64 |
| Cabinet Resolution | 128x128 |
| Mask | optional |
| Lamp Type | SMD2121 |
| Module Size (mm) | 250×250×18 |
| Module Weight (kg) | 0.54±0.05 |
| Cabinet Size (mm) | 500×500×75 |
| Cabinet Weight (kg) | 7.25±0.05 |
| Brightness (cd/sqm) | 800 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP40 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700, Ave:≤233 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -30~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

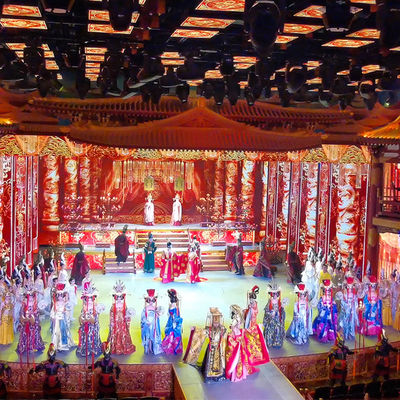

Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
