P15.6 Creative LED Display Screen , elevator Glass Transparent LED compact
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P15.6 elevator glass transparent LED screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P15.6 Elevator Glass Transparent LED Screen | Size: | 2000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:15.6mm V:15.6mm | Resolution: | 128×64 |
| Features: | High Transparency | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD3510 | Weight: | 5.5+0.05kg |
| High Light: | P15.6 Creative LED Display Screen,Elevator Creative LED Display Screen,Compact Glass Transparent LED |
||
Product Description
P15.6 elevator glass transparent LED screen LMS-Isky lightweight and compact
Description:

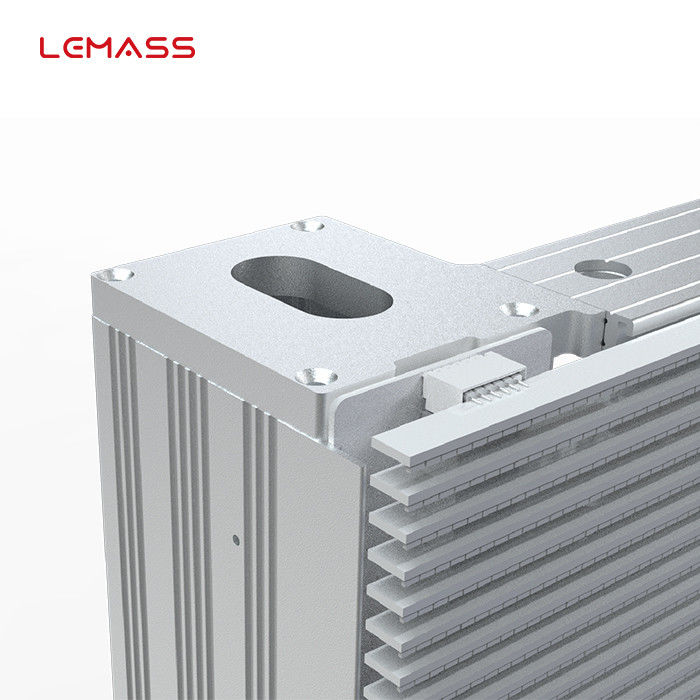

Modular design—build the size you need:
LMS-Isky displays come in standard size modules (960mm x 480mm x 30mm/37.395” x 18.897” x 1.18” up to 1000mm x 500mm x 30mm/39.37” x 19.685” x 1.18”) and can be used to create small, medium, large, and even extra-large LED screens—there are no size limitations. And no matter what size you build, the high quality brightness, resolution, and transparency remain intact. The lightweight aluminum module frames are perfectly engineered to ensure perfect assembly alignment.
Quick Detail:
· High Transparency | Above 90%
· High Brightness | 5500nit/㎡
· Tube Design
· Easy Maintenance
· Customized Size And Shape
Specifications:
| Parameter Item | LMS-Isky-T15.6 |
| Pixel Pitch (mm) | H:15.6 V:15.6 |
| Pixel Density (pixels/sqm) | 4,096 |
| Cabinet Resolution | 128×64 |
| Cabinet Size | 2000 x 1000 x 57 |
| Transparency Rate | ≧90% |
| Pixel composition | SMD3510 |
| Cabinet Weight (kg) | 5.5 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤720,Ave:≤260 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | 0~+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

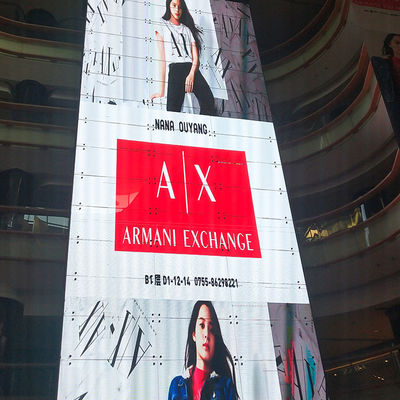

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
