Commercial P2 LED Screen , Indoor LED Display Screen 640×640mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2 Indoor display LED commercial use cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2 Indoor Display LED Commercial Use Cabinet | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 2.0mm | Resolution: | 320x320 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | ≥450cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 9.7±0.5kg |
| High Light: | Commercial P2 LED Screen,Indoor P2 LED Screen,Indoor LED Display Screen 640mm |
||
Product Description

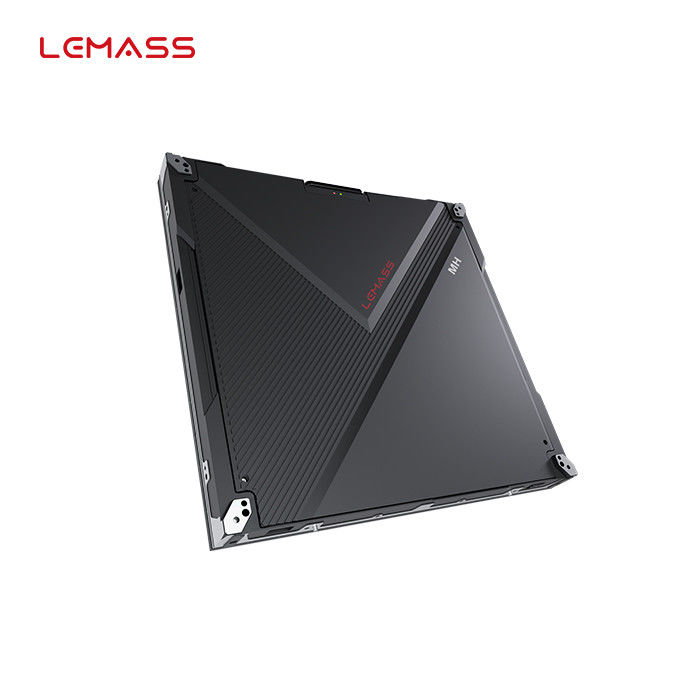

P2 Indoor display LED commercial use cabinet 640*640mm MH Plus all-round cooling system
Description:
What is an indoor Led Display and what is it for?
Indoor LED screens are special luminous devices that are spreading more and more around the cities inside shopping malls and shops, behind windows and glass façades, in a pharmacy, but also in clubs, pubs, discos, banks, restaurants, cinemas and theaters, as well as ports, stations and airports as innovative and high-tech means of digital communication. They are formed by 3-in-one LEDs, the so-called RGB SMD, to play any type of static or moving picture.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH2-G Plus |
| Pixel Pitch (mm) | 2.0 |
| Pixel Density (pixels/sqm) | 250,000 |
| Module Resolution | 160x80 |
| Cabinet Resolution | 320x320 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x74 |
| Cabinet Weight (kg) | 9.7±0.5 |
| Brightness (cd/sqm) | ≥450 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

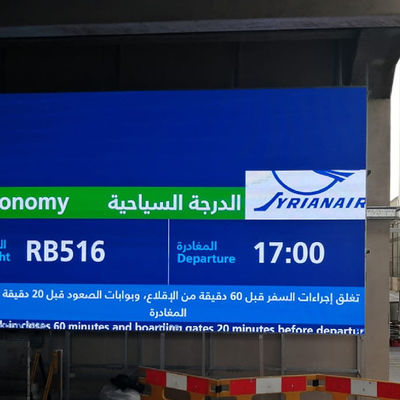

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
