SMD 1515 Indoor LED Cabinet , P2.5 LED Display For Train Station ODM
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 train station LED screen display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 Train Station LED Screen Display | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 256x256 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 9.7±0.5kg |
| High Light: | 1515 Indoor LED Cabinet,Indoor LED Cabinet ODM,SMD P2.5 LED Display |
||
Product Description

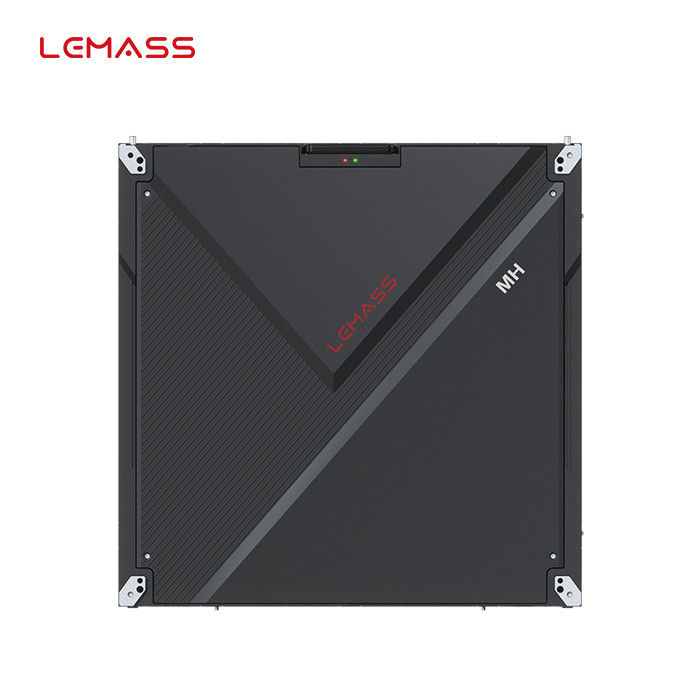

P2.5 train station LED screen display 640*640mm MH Plus 160° ultra-wide viewing angle
Description:
What features should an indoor Led video wall have?
The peculiarity of Macropix indoor led video walls is that they are absolutely versatile. They can be integrated into the furniture of a store and take on special shapes that satisfy any fantasy design and the creative requirements by architects, shop-fitters and interior designers. Thanks to their high brightness and excellent contrast, LED displays can be visible even against direct sunlight when the screen is placed behind the glass. Other products, on the other hand, are specially designed in any size, seamlessly, to deliver high and super high definition to a lot of people passing by. Other models are able to play images but at the same time maintain transparency, allowing the view from outside to inside and vice versa. The great peculiarity of indoor led video walls today is that they can grant excellent view even from very close distance, with the pixel pitch that can now be under 1 mm (even though the best-selling models are still 1.9 mm, 2.5 mm and 3.9 mm pixel pitch). Moreover you can’t see any junctions between the cabinets, so the giant indoor led screens have a continuous image with spectacular effects.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH2.5-G Plus |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm) | 160,000 |
| Module Resolution | 128x64 |
| Cabinet Resolution | 256x256 |
| Mask | No |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x74 |
| Cabinet Weight (kg) | 9.7±0.5 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

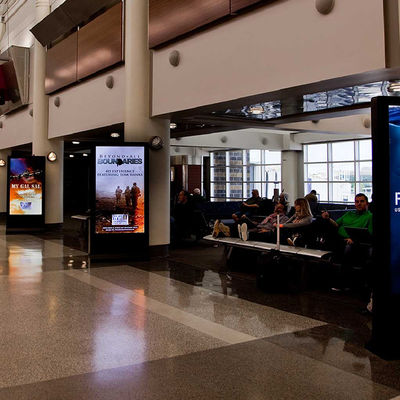

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
