P2.5 Indoor Fixed LED Display Panel 640×640mm 2.5mm Pixel Pitch
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 indoor visual resolution LED wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 Indoor Visual Resolution LED Wall | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 256x256 |
| Features: | High Refresh Rate 3840Hz | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 10.5±0.5kg |
| High Light: | P2.5 Indoor Fixed LED Display,640mm Indoor Fixed LED Display,Indoor 2.5 mm led panel |
||
Product Description

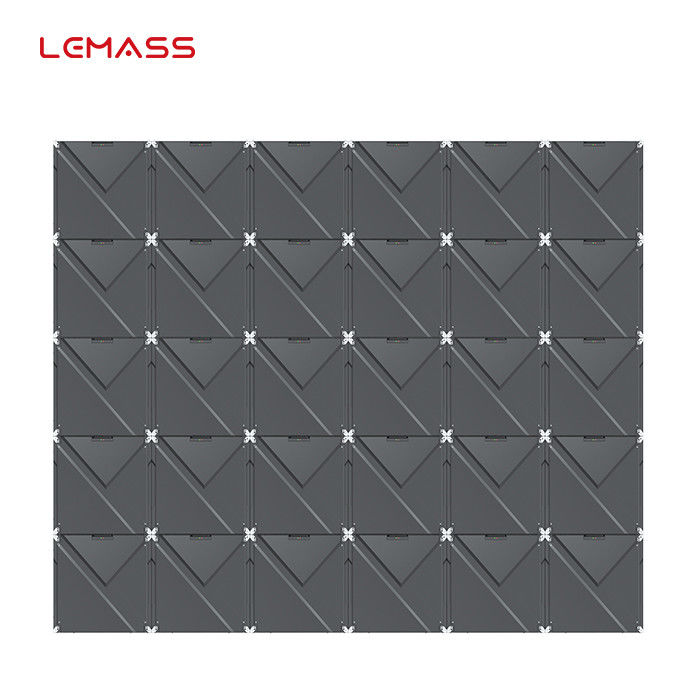

P2.5 indoor visual resolution LED wall display 640*640mm MH Plus easy to install and maintain
Description:
Visual resolution and definition of led walls
The definition of led walls is given by the distance between the diodes or pixels, or their pitch or spacing. The closer the pixels are, the higher the definition, the better you will be able to see the screen closely and the less it will be necessary to increase the screen size to gain quality. MacroPix designs, supplies and certifies models ranging from 0.7 mm pixel pitch for indoor to 50 mm or larger pixel pitch for outdoor. The most popular models of led screens are 1.9 mm, 2.6 mm and 3.9 mm for indoor and 4.8 mm, 6.67 mm and 10 mm for outdoor, but there are many other solutions available. The trend in the market is to go for narrower and narrower pixel pitches, so 1.2 and 1.5 mm for indoor and 2.6, 3.1 and 3.9 mm mm for outdoor have been already installed successfully and more will be coming soon.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH2.5-A Plus |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm) | 160,000 |
| Module Resolution | 128x64 |
| Cabinet Resolution | 256x256 |
| Mask | Optional |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x67 |
| Cabinet Weight (kg) | 10.5±0.5 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

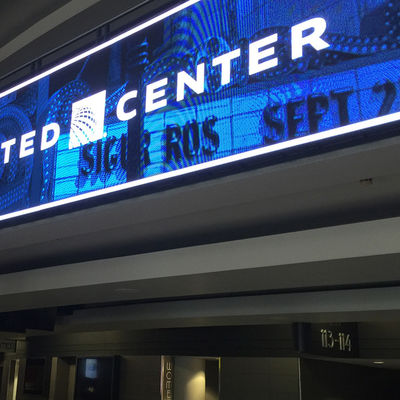

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
