Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P5 Outdoor LED Display Cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P5 Outdoor LED Display Cabinet | Size: | 1280x720mm |
|---|---|---|---|
| Pixel Pitch: | 5mm | Resolution: | 256×144 |
| Features: | 30% Energy Saving & IP66 Waterproof | Brightness: | 7500~8500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 28±0.05kg |
| High Light: | P5 Outdoor LED Display Cabinet,IP66 Outdoor LED Display Cabinet,Waterproof p5 outdoor led display |
||
Product Description

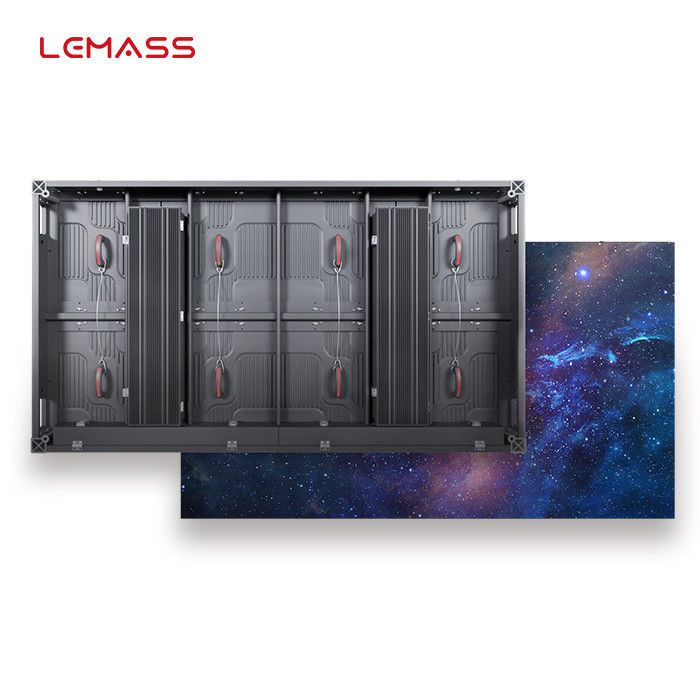

P5 Outdoor LED Display Cabinet 16:9 MA Outdoor Waterproof IP66 Energy Saving
Description:
MA Outdoor Series (common cathode circuit, ratio 16:9) adopts aluminum bottom shell structure design, light weight and easy installation, with IP66 waterproof and 30% energy saving, MA Outdoor Series has excellent weather resistance (can work in the environment of -20~50℃) equipped with AI intelligent chip and automatic readback of data, its brightness can reach ≥ 7500nits, widely used in outdoor advertising screens, building exterior walls, etc.
Quick Detail:
· Low power consumption
· Efficient heat dissipation
· AI storage function
· Ultra-high brightness
· Front and rear maintenance
· Color temperature adjustment
Specifications:
| Parameter Item | MA5S |
| Pixel Pitch (mm) | 5 |
| Pixel Density (pixels/sqm) | 40,000 |
| Module Resolution | 64×72 |
| Cabinet Resolution | 256×144 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320×360×19 |
| Module Weight (kg) | 1.95±0.05 |
| Cabinet Size (mm) | 1280x720x88.3 |
| Cabinet Weight (kg) | 28±0.05 |
| Brightness (cd/sqm) | 7500/8500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤570,Ave:≤190 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

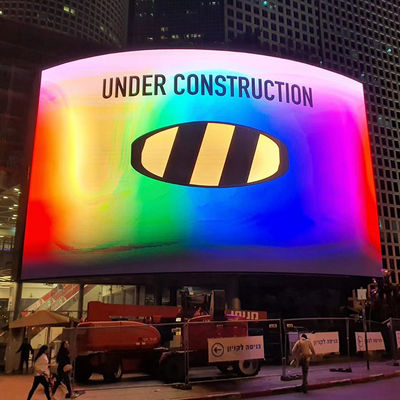

Widely used in outdoor advertising screens, building exterior walls, etc.
