P15.6 SMD Transparent LED Display Screen IP65 Waterproof For Outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P15.6 SMD customized size transparent LED screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P15.6 SMD Customized Size Transparent LED Screen | Size: | 1000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:15.6mm V:15.6mm | Resolution: | 64x64 |
| Features: | High Transparency | Brightness: | 6000cd/sqm |
| Pixel Composition: | 1xSMD2727 | Weight: | ≤17kg |
| High Light: | SMD Transparent LED Display Screen,P15.6 Transparent LED Display Screen,IP65 waterproof led screen |
||
Product Description

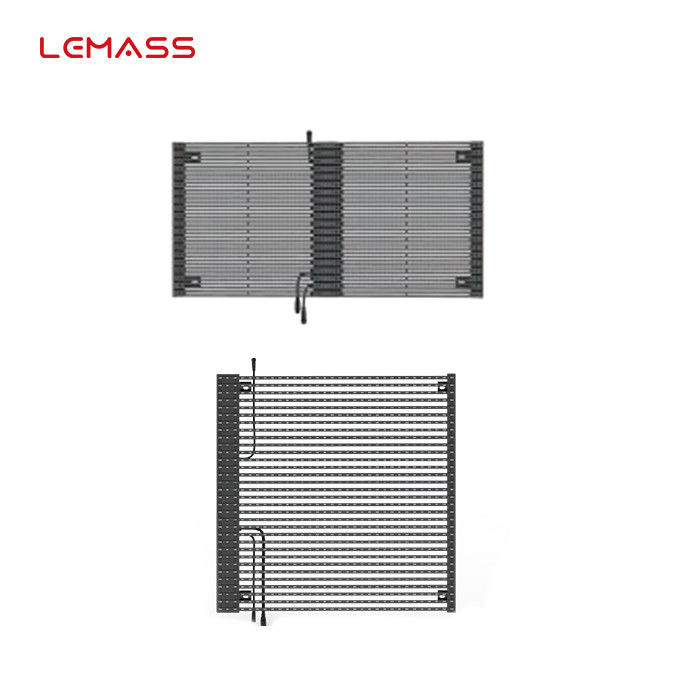

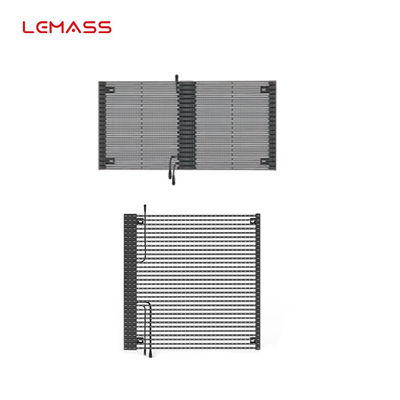

P15.6 SMD customized size transparent LED screen 1000*1000 LMS-ZBA high transparency-55%
Description:
Updates made easy—when you want them
Program updates to LMS-ZBA display screen (static and video) are simple. A control system unit, connected to your computer, allows you to make changes when you want, with an intuitive software interface that makes it easy for you to update sign displays real time, remotely, or program in advance, so your sign is always up-to-date.
Quick Detail:
· Light Weight and Ultra-slim
· Waterproof and Dustproof
· Easy to Maintain
· Lower Power Consumption
· High Transparency-55%
· High and Low Temperature Protection
Specifications:
| Parameter Item | LMS-ZBA15.6 |
| Pixel Pitch (mm) | H:15.6 V:15.6 |
| Pixel Density (pixels/sqm) | 4,096 |
| Cabinet Resolution | 64x64 |
| Cabinet Size | 1000 x 1000 x 82 |
| Transparency Rate | 48% |
| Pixel composition | 1xSMD2727 |
| Cabinet Weight (kg) | ≤17 |
| Brightness (cd/sqm) | 6000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤240 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+50 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

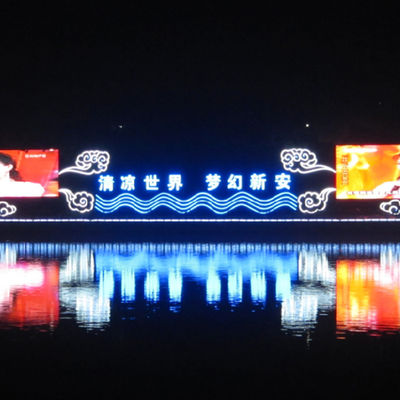

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
