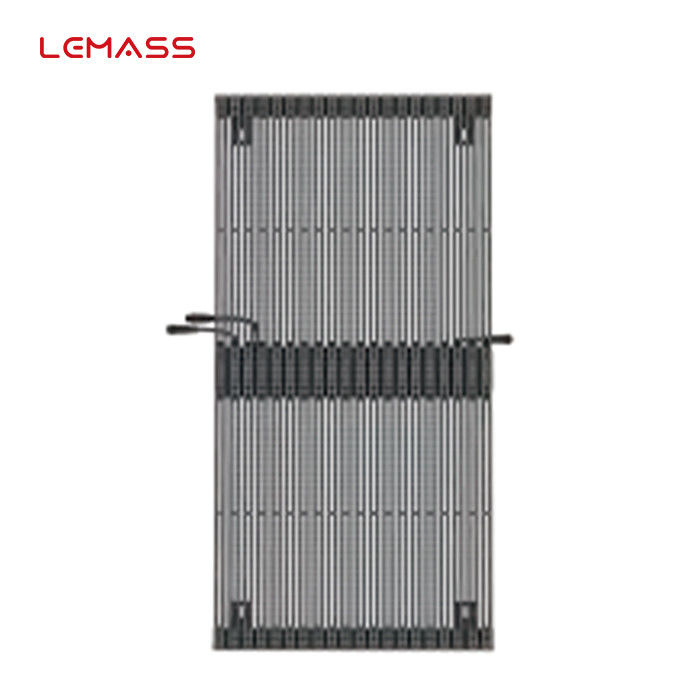

P20 SMD Outdoor LED Display Cabinet Transparent For Retail Environments OEM
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P20 SMD retail environments transparent LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P20 SMD Retail Environments Transparent LED Display | Size: | 1000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:20mm V:20mm | Resolution: | 50x50 |
| Features: | High Transparency | Brightness: | 6000cd/sqm |
| Pixel Composition: | 1xSMD2727 | Weight: | ≤17kg |
| High Light: | SMD Outdoor LED Display Cabinet,P20 Outdoor LED Display Cabinet,OEM transparent led display |
||
Product Description
P20 SMD retail environments transparent LED display 1000*1000 LMS-ZBA waterproof IP65
Description:
In the retail space many clients are looking to LED rather than static signage or product displays for their shopfront. Transparent LED screens are a relatively new and exciting product. Unlike traditional solid LED panels, Transparent LED screens with up to 70% transparency still let light into your premises and maintain visual from the inside. Think of Transparent LED screens like a venetian blind with thin LED strips on one side. Transparent LED products are very effective in retail environments where you don’t want to block viewing into or out of the store but create a very attractive and eye catching adverting space. Transparent LED products are an excellent alternative to static one-way vision signage installed on windows – imagine the flexibility to run multiple products & offers, without the printing, installation or removal costs.
Quick Detail:
· Light Weight and Ultra-slim
· Waterproof and Dustproof
· Easy to Maintain
· Lower Power Consumption
· High Transparency-55%
· High and Low Temperature Protection
Specifications:
| Parameter Item | LMS-ZBA20 |
| Pixel Pitch (mm) | H:20 V:20 |
| Pixel Density (pixels/sqm) | 2,500 |
| Cabinet Resolution | 50x50 |
| Cabinet Size | 1000 x 1000 x 82 |
| Transparency Rate | 60% |
| Pixel composition | 1xSMD2727 |
| Cabinet Weight (kg) | ≤17 |
| Brightness (cd/sqm) | 6000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤240 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+50 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
