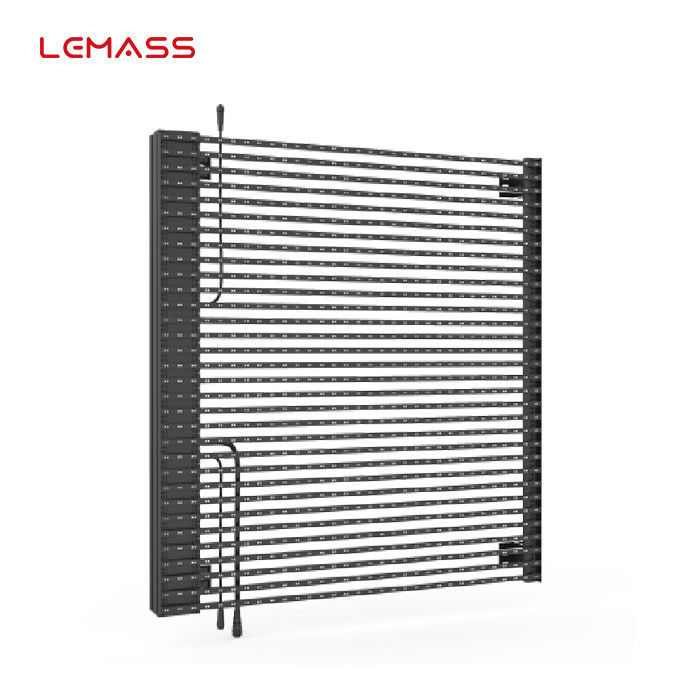

P15.6 DIP RGB Outdoor LED Display Cabinet Transparent 7000cd / Sqm Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P15.6 DIP RGB transparent LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P15.6 DIP RGB Transparent LED Display | Size: | 1000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:15.6mm V:15.6mm | Resolution: | 64x64 |
| Features: | High Transparency | Brightness: | 7000cd/sqm |
| Pixel Composition: | DIP RGB | Weight: | ≤23kg |
| High Light: | RGB Outdoor LED Display Cabinet,P15.6 Outdoor LED Display Cabinet,7000cd/Sqm LED Outdoor Display |
||
Product Description
P15.6 DIP RGB transparent LED display LMS-ZBA high protection level
Description:
Feel the difference—lightweight and compact
Designed with efficiency and functionality in mind, LMS-ZBA displays are constructed using lightweight engineered aluminum and proprietary LED technology. This means our display modules weigh as little as 10 kgs/22.05 lbs per square meter, making them highly cost efficient to transport and easier and safer to assemble.
Quick Detail:
· Light Weight and Ultra-slim
· Waterproof and Dustproof
· Easy to Maintain
· Lower Power Consumption
· High Transparency-55%
· High and Low Temperature Protection
Specifications:
| Parameter Item | LMS-ZBA15.6 |
| Pixel Pitch (mm) | H:15.6 V:15.6 |
| Pixel Density (pixels/sqm) | 4,096 |
| Cabinet Resolution | 64x64 |
| Cabinet Size | 1000 x 1000 x 82 |
| Transparency Rate | 30% |
| Pixel composition | DIP RGB |
| Cabinet Weight (kg) | ≤23 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤160 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+50 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

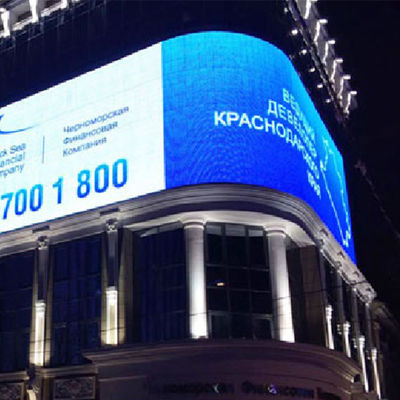

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
