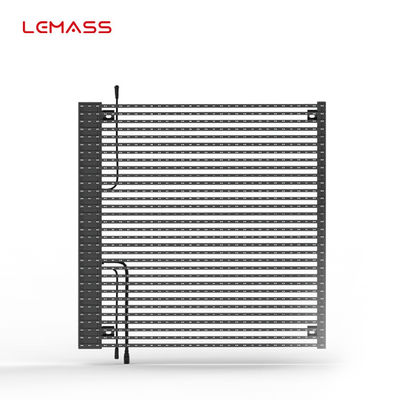

IP65 Waterproof Creative LED Screen , P20 DIP RGB Outdoor LED Display Billboard
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P20 DIP RGB creative LED video wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P20 DIP RGB Creative LED Video Wall | Size: | 1000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:20mm V:20mm | Resolution: | 50x50 |
| Features: | High Transparency | Brightness: | 7000cd/sqm |
| Pixel Composition: | DIP RGB | Weight: | ≤19kg |
| High Light: | IP65 Creative LED Screen,P20 Creative LED Screen,RGB Outdoor LED Display Billboard |
||
Product Description
P20 DIP RGB creative LED video wall LMS-ZBA high protection level waterproof and dustproof
Description:
Energy efficient, longer lifetime, and robust
LMS-ZBA displays offer one of the highest energy consumption savings of any digital signage on the market today—over incandescent light sources, LCD projection, and regular non-transparent LED displays. LMS-ZBA displays have many additional advantages, including longer lifetime, improved physical robustness, smaller size, faster switching, and are so bright they get noticed even in full daylight.
Quick Detail:
· Light Weight and Ultra-slim
· Waterproof and Dustproof
· Easy to Maintain
· Lower Power Consumption
· High Transparency-55%
· High and Low Temperature Protection
Specifications:
| Parameter Item | LMS-ZBA20 |
| Pixel Pitch (mm) | H:20 V:20 |
| Pixel Density (pixels/sqm) | 2,500 |
| Cabinet Resolution | 50x50 |
| Cabinet Size | 1000 x 1000 x 82 |
| Transparency Rate | 52% |
| Pixel composition | DIP RGB |
| Cabinet Weight (kg) | ≤19 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤430,Ave:≤140 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+50 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

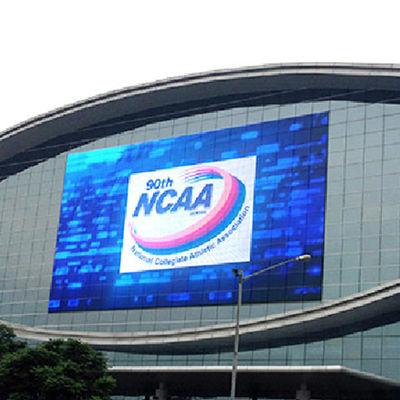

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
