P31.25 DIP RGB Outdoor LED Display Cabinet Dustproof With 32x32 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P31.25 DIP RGB transparent LED advertising screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P31.25 DIP RGB Transparent LED Advertising Screen | Size: | 1000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:31.25mm V:31.25mm | Resolution: | 32x32 |
| Features: | High Transparency | Brightness: | 7000cd/sqm |
| Pixel Composition: | DIP RGB | Weight: | ≤16kg |
| High Light: | Outdoor LED Display Cabinet Dustproof,P31.25 Outdoor LED Display Cabinet,32x32 Outdoor LED Display Cabinet |
||
Product Description

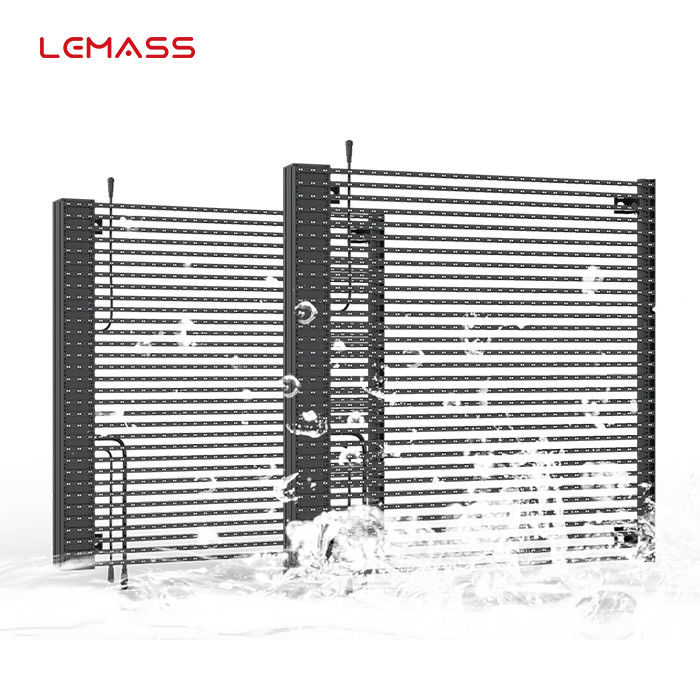

P31.25 DIP RGB transparent LED advertising screen display LMS-ZBA simple and sleek
Description:
Outstanding appearance—simple and sleek
LMS-ZBA transparent LED display modules have been designed to take up the minimum of space yet deliver maximum impact. The support frames are simple, lightweight, and elegantly constructed, making your displays clean and unobtrusive—even the noise-free power box is hidden within the display support frames.
Quick Detail:
· Light Weight and Ultra-slim
· Waterproof and Dustproof
· Easy to Maintain
· Lower Power Consumption
· High Transparency-55%
· High and Low Temperature Protection
Specifications:
| Parameter Item | LMS-ZBA31.25 |
| Pixel Pitch (mm) | H:31.25 V:31.25 |
| Pixel Density (pixels/sqm) | 1,024 |
| Cabinet Resolution | 32x32 |
| Cabinet Size | 1000 x 1000 x 82 |
| Transparency Rate | 70% |
| Pixel composition | DIP RGB |
| Cabinet Weight (kg) | ≤16 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤300,Ave:≤100 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+50 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

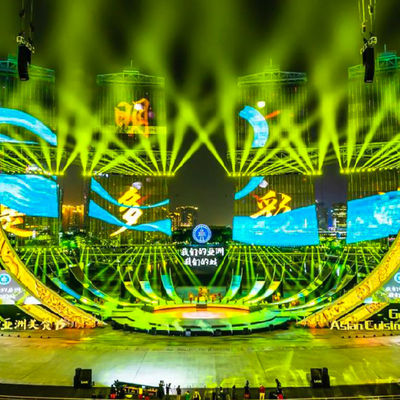

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
