DIP 2R2G2B Transparent LED Screen , P50 Waterproof Outdoor LED Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P50 DIP 2R2G2B transparent LED screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P50 DIP 2R2G2B Transparent LED Screen | Size: | 1000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:50mm V:50mm | Resolution: | 20x20 |
| Features: | High Transparency | Brightness: | 7000cd/sqm |
| Pixel Composition: | DIP 2R2G2B | Weight: | ≤10kg |
| High Light: | 2R2G2B Transparent LED Screen,Waterproof Transparent LED Screen,P50 Waterproof Outdoor LED Display Screen |
||
Product Description
P50 DIP 2R2G2B transparent LED screen 1000*1000 LMS-ZBA easy setup and installation
Description:

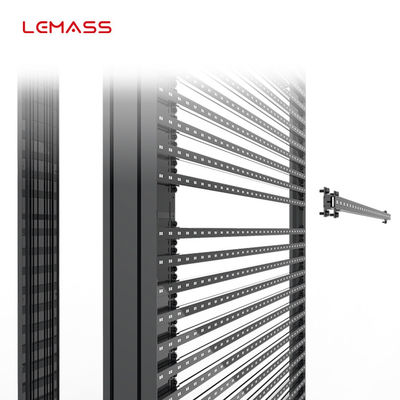

Easy setup and installation
Custom LMS-ZBA installations may require support from one of our trusted dealer technicians—but either way our modular panels snap together easily without the need of complicated tools. Power supplies are built into the supporting frame, which make it easier and faster to install, and displays can be hung or mounted. You’ll find that setup time is amazingly quick.
Quick Detail:
· Light Weight and Ultra-slim
· Waterproof and Dustproof
· Easy to Maintain
· Lower Power Consumption
· High Transparency-55%
· High and Low Temperature Protection
Specifications:
| Parameter Item | LMS-ZBA50 |
| Pixel Pitch (mm) | H:50 V:50 |
| Pixel Density (pixels/sqm) | 400 |
| Cabinet Resolution | 20x20 |
| Cabinet Size | 1000 x 1000 x 82 |
| Transparency Rate | 75% |
| Pixel composition | DIP 2R2G2B |
| Cabinet Weight (kg) | ≤10 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤180,Ave:≤60 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+50 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

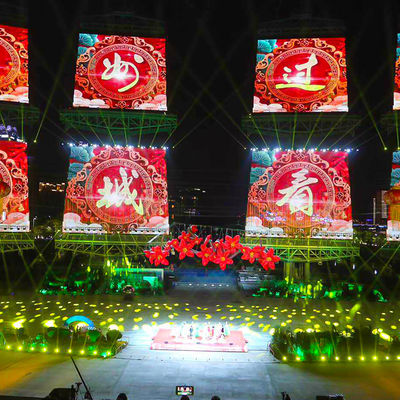

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
